FreeBSD 14 on the Desktop

November 20, 2024 AD

After much deliberation, I finally decided to migrate my entire infrastructure from Rocky Linux to FreeBSD.

Why FreeBSD? Perhaps you yearn for a simpler time, when ifconfig configured your network interfaces. When /etc/motd didn’t download advertisements from the web. When adults actually packaged their software, instead of shipping 400 MB Flatpaks that make syscalls over D-Bus.

Rest easy, weary netizen. While the teenagers busy themselves with systemd-resolved, Netplan, and other horrors, you can still find peace in the tranquility of /etc/rc.conf. The enemy, ensnared by the YAML tarpit, is not yet at our gates (sic transit gloria mundi, etc).

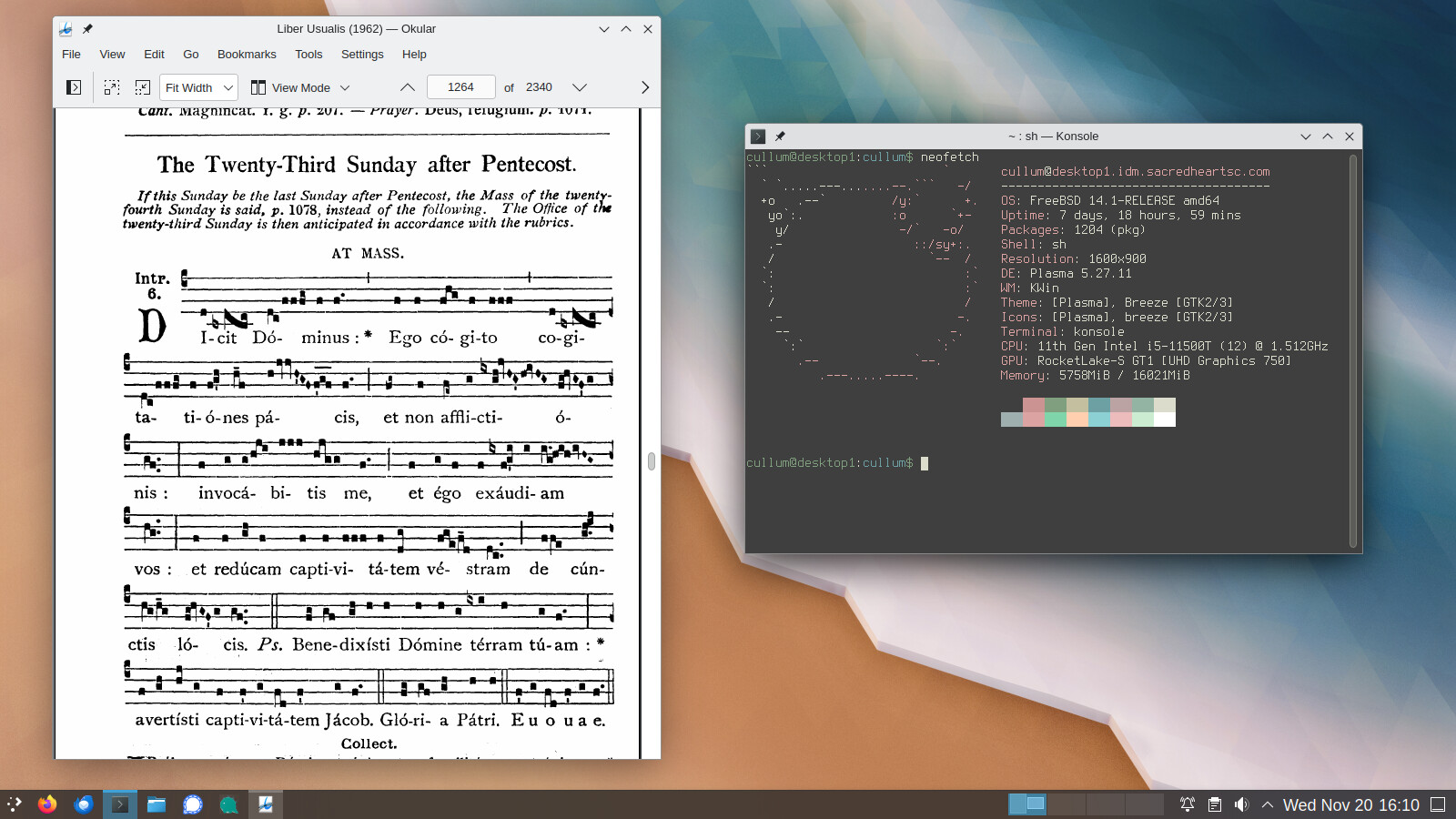

Anyway, let’s build a FreeBSD desktop system with KDE. This guide will assume you’re using Intel graphics with X11 (don’t @ me about Wayland 🤡).

On my 5-year-old ThinkPad X1 Carbon, I’m getting about 6-7 hours of battery life with FreeBSD. Not too bad!

Installation

Grab a FreeBSD memstick image from here and dd it to a USB stick:

curl -OJ https://download.freebsd.org/releases/amd64/amd64/ISO-IMAGES/14.1/FreeBSD-14.1-RELEASE-amd64-memstick.img
sudo dd if=FreeBSD-14.1-RELEASE-amd64-memstick.img of=/dev/sdX bs=1M conv=sync

The installation wizard is straightforward. Make sure your system is configured for UEFI boot, and select ZFS (GPT) for the disk layout.

Once you reboot, login as root using the password specified during installation.

Devices, Drivers, and Tuning

In this section, we’ll configure device drivers and make various tweaks to get optimum performance out of a desktop system.

You’re not required to use all of these, but they’ve worked well for me.

Bootloader Tunables

First, open up /boot/loader.conf and consider adding the following:

# /boot/loader.conf

# Faster boot time.
autoboot_delay="3"

# Load PF firewall module.
pf_load="YES"

# Enable querying CPU information and temperature.
cpuctl_load="YES"
coretemp_load="YES"

# 99% of users will never need destructive dtrace.
security.bsd.allow_destructive_dtrace="0"

# Bump up some default limits for desktop usage.
kern.ipc.shmseg="1024"
kern.ipc.shmmni="1024"
kern.maxproc="100000"

# If your system supports Intel Speed Shift (check dmesg), set this to 0:
machdep.hwpstate_pkg_ctrl="0"

# Enable PCI power saving.
hw.pci.do_power_nodriver="3"

# Optimizations for Intel graphics.
compat.linuxkpi.i915_enable_fbc="1"
compat.linuxkpi.i915_fastboot="1"

# Enable this module to use USB tethering (Android/iPhone)
if_urndis_load="YES"

################
# Network tuning
################
# H-TCP congestion control algorithm designed to perform better over fast,
# long-distance networks (like the internet). You might consider using it.
cc_htcp_load="YES"

# Enable faster soreceive() implementation.
net.inet.tcp.soreceive_stream="1"

# Increase network interface queue length.
net.isr.defaultqlimit="2048"
net.link.ifqmaxlen="2048"

########################
# Laptop-related options
########################
# Increase ZFS transaction timeout to save battery.
vfs.zfs.txg.timeout="10"

# Power saving for Intel graphics.
compat.linuxkpi.i915_disable_power_well="1"
compat.linuxkpi.i915_enable_dc="2"

# Enable Thinkpad buttons.
acpi_ibm_load="YES"

Sysctl Tweaks

Next, open up /etc/sysctl.conf and consider setting the following sysctls. Note that you can view the description of any sysctl by running sysctl -d.

# /etc/sysctl.conf

####################
# sEcuRitY HaRdeNinG
####################
hw.kbd.keymap_restrict_change=4
kern.coredump=0
kern.elf32.aslr.pie_enable=1
kern.random.fortuna.minpoolsize=128
kern.randompid=1
net.inet.icmp.drop_redirect=1
net.inet.ip.process_options=0
net.inet.ip.random_id=1
net.inet.ip.redirect=0
net.inet.ip.rfc1122_strong_es=1
net.inet.tcp.always_keepalive=0
net.inet.tcp.drop_synfin=1
net.inet.tcp.icmp_may_rst=0
net.inet.tcp.syncookies=0
net.inet6.ip6.redirect=0
security.bsd.unprivileged_proc_debug=1
security.bsd.unprivileged_read_msgbuf=0

# Some guides will tell you use these.
# More trouble than they're worth, IMO:
#
#kern.elf32.allow_wx=0
#kern.elf64.allow_wx=0
#security.bsd.hardlink_check_gid=1
#security.bsd.hardlink_check_uid=1
#security.bsd.see_other_gids=0
#security.bsd.see_other_uids=0

##################################
# Network performance tuning
#
# The default values for many of these sysctls are optimized for the latencies
# of a local network. The modifications below should result in better TCP
# performance over connections with a larger RTT (like the internet), but at
# the expense of higher memory utilization.
#
# source: trust me, bro
###############################
kern.ipc.maxsockbuf=2097152
kern.ipc.soacceptqueue=1024
kern.ipc.somaxconn=1024
net.inet.tcp.abc_l_var=44
net.inet.tcp.cc.abe=1
net.inet.tcp.cc.algorithm=htcp
net.inet.tcp.cc.htcp.adaptive_backoff=1
net.inet.tcp.cc.htcp.rtt_scaling=1
net.inet.tcp.ecn.enable=1
net.inet.tcp.fast_finwait2_recycle=1
net.inet.tcp.fastopen.server_enable=1
net.inet.tcp.finwait2_timeout=5000
net.inet.tcp.initcwnd_segments=44
net.inet.tcp.keepcnt=2
net.inet.tcp.keepidle=62000
net.inet.tcp.keepinit=5000
net.inet.tcp.minmss=536
net.inet.tcp.msl=2500
net.inet.tcp.mssdflt=1448
net.inet.tcp.nolocaltimewait=1
net.inet.tcp.recvbuf_max=2097152
net.inet.tcp.recvspace=65536
net.inet.tcp.sendbuf_inc=65536
net.inet.tcp.sendbuf_max=2097152
net.inet.tcp.sendspace=65536
net.local.stream.recvspace=65536
net.local.stream.sendspace=65536

#######################
# Desktop optimizations
#######################
# Prevent shared memory from being swapped to disk.
kern.ipc.shm_use_phys=1

# Increase scheduler preemption threshold for snappier GUI experience.
kern.sched.preempt_thresh=224

# Allow unprivileged users to mount things.
vfs.usermount=1

# Don't switch virtual consoles back and forth on suspend.
# With some graphics cards, switching to a different VT breaks hardware acceleration.
# https://github.com/freebsd/drm-kmod/issues/175
kern.vt.suspendswitch=0

########################
# Power saving (laptops)
########################
hw.snd.latency=7

WiFi

WiFi is not where FreeBSD shines. Hope you can live with 802.11g.

First, you’ll need to figure out which driver supports your card (if any). For Intel cards, this will likely be iwn(4), iwm(4), or iwlwifi(4). Check those man pages.

My card happens to be an Intel Wireless AC 8265, which is supported by the iwm driver.

First, make sure the required kernel modules are loaded on boot:

# /boot/loader.conf

if_iwm_load="YES"
iwm8265fw_load="YES"

Next, have rc(8) create a wlan0 device on boot:

sysrc -v wlans_iwm0=wlan0
sysrc -v create_args_wlan0='country US regdomain FCC'
sysrc -v ifconfig_wlan0='WPA DHCP powersave'

The WPA option will use wpa_supplicant(8) to manage WiFi networks. You can either edit /etc/wpa_supplicant.conf by hand, or use the graphical interface provided by networkmgr:

pkg install sudo networkmgr

Note that networkmgr requires root permissions. You can allow all members of the operator group to run networkmgr without a password using sudo:

# /usr/local/etc/sudoers.d/networkmgr

%operator ALL=NOPASSWD: /usr/local/bin/networkmgr

CPU Microcode and Power Savings

Install the latest CPU microcode:

pkg install cpu-microcode

Edit /boot/loader.conf to load the microcode on boot:

# /boot/loader.conf

cpu_microcode_load="YES"
cpu_microcode_name="/boot/firmware/intel-ucode.bin"

You can save a lot of battery (and heat) by enabling lower CPU C-states:

sysrc -v performance_cx_lowest=Cmax economy_cx_lowest=Cmax

Note that with modern Intel processors, it is no longer necessary to run powerd(8).

Intel Graphics Driver

Install the Intel graphics driver and make sure it’s loaded on boot:

pkg install drm-kmod libva-intel-media-driver
sysrc -v kld_list+=i915kms

Linux Binary Compatibility

The Linuxulator allows you to run Linux binaries on FreeBSD:

sysrc -v linux_enable=YES

Allow Filesystems in Userspace

If you ever need to mount foreign filesystems, you’ll need FUSE:

sysrc -v kld_list+=fusefs

Webcam

With any luck, your webcam will be supported by webcamd:

pkg install webcamd v4l-utils
sysrc -v webcamd_enable=YES

Sound

Many ports are built with sndio support by default (like Firefox). You can think of it as a BSD-native pulseaudio.

pkg install sndio
sysrc -v sndiod_enable=YES

# There appears to be a race condition with sndiod and clear_tmp_enable.
# When /tmp is cleared out on boot, the sndiod socket is inadvertently removed!
sysrc -v clear_tmp_enable=NO

Using different audio devices simultaneously

FreeBSD’s OSS has an unfortunate limitation: only one audio device can be used at a time. For example, I was unable to use my webcam’s integrated microphone and my USB speakers simultaneously during video chats.

As described on the FreeBSD Wiki, the virtual_oss(8) package exists to work around this limitation:

pkg install virtual_oss

First, check the contents of /dev/sndstat to determine your device numbering:

$ cat /dev/sndstat
Installed devices:
pcm0: <vendor 0x046d HD Pro Webcam C920> (rec)
pcm1: <Audioengine Ltd. Audioengine 2+> (play) default

Since my output (-O) device has index 1, and my recording (-R) device has index 0, I’ll enable virtual_oss like so:

sysrc -v virtual_oss_enable=YES
sysrc -v virtual_oss_dsp='-T /dev/sndstat -C 2 -c 2 -S -r 48000 -b 16 -s 100ms -O /dev/dsp1 -R /dev/dsp0 -d dsp'

You’ll need to set the -r flag to the sample rate and -b to the bit depth of your device (you can usually find these values in dmesg). If your devices have different sample rates, the -S flag enables automatic resampling.

The -s flag sets the buffer size. I had to increase this to 100ms to avoid clipping.

Device Permissions via devfs

You should create a custom devfs(8) ruleset to allow unprivileged users to access various hardware devices. Create /etc/devfs.rules with the following:

# /etc/devfs.rules

[localrules=1000]
add path 'drm/*'       mode 0660 group operator
add path 'backlight/*' mode 0660 group operator
add path 'video*'      mode 0660 group operator
add path 'usb/*'       mode 0660 group operator

If you plan on burning CDs, you will need a few more lines. First, check the output of camcontrol devlist to determine the pass(4) device associated with your CD burner:

$ camcontrol devlist
<AHCI SGPIO Enclosure 2.00 0001>   at scbus0 target 0 lun 0 (ses0,pass0)
<CL1-3D256-Q11 NVMe SSSTC 256GB 22301116>  at scbus1 target 0 lun 1 (pass1,nda0)
<HL-DT-ST BD-RE BU40N 1.03>        at scbus2 target 0 lun 0 (cd0,pass2)

In my case, cd0 is associated with pass2, so I will add the following:

add path 'xpt*'        mode 0660 group operator
add path 'cd*'         mode 0660 group operator
add path 'pass2'       mode 0660 group operator

Be sure to set the default ruleset like so:

sysrc -v devfs_system_ruleset=localrules

USB Power Saving

If you’re using a laptop, you’ll want to power down inactive USB devices to save battery life.

Add the following to /etc/rc.local:

# /etc/rc.local

usbconfig | awk -F: '{ print $1 }' | xargs -rtn1 -I% usbconfig -d % power_save

ThinkPad Backlight Controls

I had to do a bit of work to get the backlight keys working on my ThinkPad X1 Carbon.

First make sure the acpi_ibm kernel module is loaded:

kldload acpi_ibm

Then, set the following sysctl to allow devd(8) to handle the button events:

sysctl dev.acpi_ibm.0.handlerevents='0x10 0x11'

We’ll need a devd(8) rule to handle these events. Create /etc/devd/thinkpad-brightness.conf with the following:

# /etc/devd/thinkpad-brightness.conf

notify 20 {
  match "system"    "ACPI";
  match "subsystem" "IBM";
  match "notify"    "0x10";
  action            "/usr/local/libexec/thinkpad-brightness up";
};

notify 20 {
  match "system"    "ACPI";
  match "subsystem" "IBM";
  match "notify"    "0x11";
  action            "/usr/local/libexec/thinkpad-brightness down";
};

Finally, create the following script at /usr/local/libexec/thinkpad-brightness:

#!/bin/sh

# /usr/local/libexec/thinkpad-brightness

cur=$(/usr/bin/backlight -q)

case $1 in
  up)
      if [ "$cur" -ge 50 ]; then
        delta=10
      elif [ "$cur" -ge 10 ]; then
        delta=5
      else
        delta=2
      fi

      /usr/bin/backlight incr "$delta"
    ;;
  down)
      if [ "$cur" -le 10 ]; then
        delta=2
      elif [ "$cur" -le 50 ]; then
        delta=5
      else
        delta=10
      fi

      /usr/bin/backlight decr "$delta"
    ;;
esac

Don’t forget to make it executable:

chmod 755 /usr/local/libexec/thinkpad-brightness

Reboot

Reboot to apply these changes and make sure you didn’t break anything:

reboot

PF Firewall

It’s sensible to block unexpected incoming connections. Create /etc/pf.conf with the following:

# /etc/pf.conf

# Replace this with the names of your network interfaces.
egress = "{ em0, wlan0, ue0 }"

allowed_tcp_ports = "{ ssh }"
# If you do any voice/video chats, you may need to open UDP ports for RTP.
allowed_udp_ports = "{ 1024:65535 }"

set block-policy return
set skip on lo

scrub in on $egress all fragment reassemble
antispoof quick for $egress

block all
pass out quick on $egress inet
pass in quick on $egress inet proto icmp all icmp-type { echoreq, unreach }

pass in quick on $egress inet proto tcp to port $allowed_tcp_ports
pass in quick on $egress inet proto udp to port $allowed_udp_ports

Activate the firewall:

sysrc -v pf_enable=YES
service pf start

Disable Periodic Scripts

Out of the box, FreeBSD includes a bunch of periodic(8) scripts that churn through your hard disk, reach out to the internet, and send emails. I disable most of these. You can check /etc/defaults/periodic.conf for a full list.

sysrc -v -f /etc/periodic.conf \
  daily_backup_aliases_enable=NO \
  daily_backup_gpart_enable=NO \
  daily_backup_passwd_enable=NO \
  daily_clean_disks_verbose=NO \
  daily_clean_hoststat_enable=NO \
  daily_clean_preserve_verbose=NO \
  daily_clean_rwho_verbose=NO \
  daily_clean_tmps_verbose=NO \
  daily_show_info=NO \
  daily_show_success=NO \
  daily_status_disks_enable=NO \
  daily_status_include_submit_mailq=NO \
  daily_status_mail_rejects_enable=NO \
  daily_status_mail_rejects_enable=NO \
  daily_status_mailq_enable=NO \
  daily_status_network_enable=NO \
  daily_status_security_enable=NO \
  daily_status_uptime_enable=NO \
  daily_status_world_kernel=NO \
  daily_status_zfs_zpool_list_enable=NO \
  daily_submit_queuerun=NO \
  monthly_accounting_enable=NO \
  monthly_show_info=NO \
  monthly_show_success=NO \
  monthly_status_security_enable=NO \
  security_show_info=NO \
  security_show_success=NO \
  security_status_chkmounts_enable=NO \
  security_status_chksetuid_enable=NO \
  security_status_chkuid0_enable=NO \
  security_status_ipf6denied_enable=NO \
  security_status_ipfdenied_enable=NO \
  security_status_ipfwdenied_enable=NO \
  security_status_ipfwlimit_enable=NO \
  security_status_kernelmsg_enable=NO \
  security_status_logincheck_enable=NO \
  security_status_loginfail_enable=NO \
  security_status_neggrpperm_enable=NO \
  security_status_passwdless_enable=NO \
  security_status_pfdenied_enable=NO \
  security_status_tcpwrap_enable=NO \
  weekly_locate_enable=NO \
  weekly_show_info=NO \
  weekly_show_success=NO \
  weekly_status_security_enable=NO \
  weekly_whatis_enable=NO

Add Users

Create your local user account. Make sure to add yourself to the operator and wheel groups.

pw useradd           \
  -n robertlee       \
  -c 'Robert E. Lee' \
  -s /bin/sh         \
  -M 700             \
  -d /home/robertlee \
  -G operator,wheel

You’ll probably want to install sudo:

pkg install sudo

Update /usr/local/etc/sudoers to give sudo permissions to the wheel group:

# /usr/local/etc/sudoers

%wheel ALL=(ALL:ALL) ALL

Set Locale

Set your locale for login shells in /etc/login.conf. Modify this file as shown below with your preferred locale:

--- login.conf
+++ login.conf
@@ -23,7 +23,9 @@
        :umtxp=unlimited:\
        :priority=0:\
        :ignoretime@:\
-       :umask=022:
+       :umask=022:\
+       :charset=UTF-8:\
+       :lang=en_US.UTF-8:

Rebuild the login database to apply this change:

cap_mkdb /etc/login.conf

For non-login shells, create /etc/profile.d/locale.sh like so:

# /etc/profile.d/locale.sh

export LANG=en_US.UTF-8
export CHARSET=UTF-8

Enable NTP

ntpd(8) will keep your system clock up-to-date.

Edit /etc/ntp.conf with your preferred NTP servers:

tos minclock 3 maxclock 6

pool 0.freebsd.pool.ntp.org iburst
pool 2.freebsd.pool.ntp.org iburst

restrict default limited kod nomodify notrap noquery nopeer
restrict source  limited kod nomodify notrap noquery

restrict 127.0.0.1
restrict ::1

leapfile "/var/db/ntpd.leap-seconds.list"

Start ntpd:

sysrc -v ntpd_enable=YES ntpd_sync_on_start=YES
service ntpd start

Set the Timezone

In case you didn’t do this during the installation, set your timezone:

ln -sfhv /usr/share/zoneinfo/America/New_York /etc/localtime

Switch to openssh-portable

The ssh in FreeBSD’s base system is heavily patched with stuff I don’t use. I prefer to use the vanilla openssh-portable from ports.

pkg install openssh-portable

Edit /usr/local/etc/ssh/sshd_config as appropriate:

# /usr/local/etc/ssh/sshd_config

PermitRootLogin prohibit-password

UsePAM yes
UseDNS no

Subsystem sftp /usr/local/libexec/sftp-server

Replace the running sshd with the new one:

sysrc -v sshd_enable=NO openssh_enable=YES
service sshd stop
service openssh start

The ssh command will continue using the base system’s /usr/bin/ssh unless you update your $PATH.

You can edit /etc/login.conf to make the change for all users:

--- login.conf
+++ login.conf
@@ -4,7 +4,7 @@
        :welcome=/var/run/motd:\
        :setenv=BLOCKSIZE=K:\
        :mail=/var/mail/$:\
-       :path=/sbin /bin /usr/sbin /usr/bin /usr/local/sbin /usr/local/bin ~/bin:\
+       :path=/sbin /bin /usr/local/sbin /usr/local/bin /usr/sbin /usr/bin ~/bin:\
        :nologin=/var/run/nologin:\
        :cputime=unlimited:\
        :datasize=unlimited:\

Rebuild the login database to apply this change:

cap_mkdb /etc/login.conf

Fix 256-color XTerm

The termcap(5) database on FreeBSD has an issue which prevents bright colors from rendering on xterm-like terminals.

You can fix it by installing terminfo-db:

pkg install terminfo-db

Install Root Certificates

FreeBSD trusts a limited number of certificate authorities out of the box. Install the root CA bundle from Mozilla to trust all the standard ones:

pkg install ca_root_nss

Install KDE and Desktop Applications

Grab a cup of coffee and kick back while you install KDE and all the desktop packages. You might not want all of these, they’re just what I find useful.

pkg install \
  audacious-plugins-qt5 \
  audacious-qt5 \
  chromium \
  digikam \
  elisa \
  en-hunspell \
  firefox \
  freedesktop-sound-theme \
  k3b \
  kde5 \
  kid3-kf5 \
  kmix \
  konversation \
  libreoffice \
  libva-utils \
  libvdpau-va-gl \
  merkuro \
  plasma5-sddm-kcm \
  sddm \
  signal-desktop \
  thunderbird \
  vdpauinfo \
  xorg

Install Fonts

You’ll find that some websites don’t render quite right without these fonts installed:

pkg install \
  cantarell-fonts \
  droid-fonts-ttf \
  inconsolata-ttf \
  noto-basic \
  noto-emoji \
  roboto-fonts-ttf \
  ubuntu-font \
  webfonts

And of course, how can you live without Terminus:

pkg install terminus-font terminus-ttf

If you want to use the bitmapped version, you’ll need to update xorg.conf.d:

# /usr/local/etc/X11/xorg.conf.d/terminus.conf

Section "Files"
  FontPath "/usr/local/share/fonts/terminus-font/"
EndSection

Enable D-Bus

D-Bus is required for KDE and just about every GUI application these days.

sysrc -v dbus_enable=YES
service dbus start

Configure SDDM

sddm is the preferred login manager for KDE. Enable and start it:

sysrc -v sddm_enable=YES
service sddm start

With any luck, you’ll be dumped to a graphical login screen where you can launch KDE.

KDE under Wayland won’t even start for me. To prevent my wife from accidentally selecting it, I disabled Wayland in sddm.conf(5) like so:

# /usr/local/etc/sddm.conf

[General]
DisplayServer = x11

[Wayland]
SessionDir = /dev/null

Hopefully by the time Wayland runs on FreeBSD, the RedHat teenagers will have moved on to another display server. X11 works fine.

Known Issues

This section describes what doesn’t work on FreeBSD, and some potential workarounds.

User switching is broken

There is a long-standing ConsoleKit2 bug that prevents user switching from working reliably on FreeBSD.

There is another bug that results in broken graphics acceleration whenever a VT switch is performed.

Therefore, it’s best to just disable user switching for now. You can disable it for all users by adding the following to /usr/local/etc/xdg/kdeglobals:

# /usr/local/etc/xdg/kdeglobals

[KDE Action Restrictions]
action/start_new_session=false
action/switch_user=false

Processes aren’t killed on logout

On FreeBSD, multiple processes remain running indefinitely after logging out of a KDE session. Chromium is especially annoying: it continues running after logout, but gets trapped in some crazy state where it consumes 100% of a CPU core forever.

I imagine the KDE developers are mostly concerned with systemd-based Linux distributions, where logind ensures that all processes associated with a user session are forcibly killed when the user logs out. So this probably isn’t on anyone’s radar.

Luckily, KDE Plasma has the ability to run a cleanup script whenever a user logs out. Create the following directory:

mkdir -p /usr/local/etc/xdg/plasma-workspace/shutdown

Then create /usr/local/etc/xdg/plasma-workspace/shutdown/cleanup.sh like so:

#!/bin/sh

# /usr/local/etc/xdg/plasma-workspace/shutdown/cleanup.sh

# Some processes don't kill themselves when the X server dies.
# This script takes care of them.
pkill signal-desktop chrome baloo_file dirmngr
pkill -f /usr/local/libexec/geoclue-2.0/demos/agent

Don’t forget to make this file executable:

chmod +x /usr/local/etc/xdg/plasma-workspace/shutdown/cleanup.sh

Baloo creates a gazillion .nfs files

If you have NFS-mounted home directories (like I do), you may notice that your homedir is littered with hundreds of .nfs files.

KDE comes with a file indexing service called Baloo. Baloo seems to keep lots of open file handles on the files it’s indexing. If these files get deleted, the NFS silly rename hack is triggered, causing a bunch of .nfs files to be created.

I’ve read that Baloo doesn’t index network mounts, but apparently it does (at least on FreeBSD).

You can disable Baloo for all users by creating /usr/local/etc/xdg/baloofilerc with the following:

# /usr/local/etc/xdg/baloofilerc

[Basic Settings]
Indexing-Enabled=false

Hardware video acceleration broken in Chromium

Video playback in Chromium is supposed to be hardware-accelerated using VA-API. However, despite installing libva-intel-media-driver, my CPU was pegged at 60% or so when watching a YouTube video.

I blindly copy-pasted dozens of command-line flags for Chromium until I found the incantation that enabled hardware-accelerated video playback:

chrome --enable-features=Vulkan,VulkanFromANGLE,DefaultANGLEVulkan

With those magic flags, CPU usage does not noticeably increase during video playback.

To make this change permanent, you can use a custom .desktop override for Chromium. First, create a new directory to hold our custom .desktop files:

mkdir -p /usr/local/share-override/applications

Then, you must set the $XDG_DATA_DIRS environment variable so your new directory takes precedence:

--- login.conf
+++ login.conf
@@ -2,7 +2,7 @@
        :passwd_format=sha512:\
        :copyright=/etc/COPYRIGHT:\
        :welcome=/var/run/motd:\
-       :setenv=BLOCKSIZE=K:\
+       :setenv=BLOCKSIZE=K,XDG_DATA_DIRS=/usr/local/share-override\c/usr/local/share:\
        :mail=/var/mail/$:\
        :path=/sbin /bin /usr/local/sbin /usr/local/bin /usr/sbin /usr/bin ~/bin:\
        :nologin=/var/run/nologin:\

And, as usual:

cap_mkdb /etc/login.conf

Finally, create a custom chromium-browser.desktop file like so:

# /usr/local/share-override/desktop/chromium-browser.desktop

[Desktop Entry]
Type=Application
Version=1.0
Encoding=UTF-8
Name=Chromium
Comment=Google web browser based on WebKit
Icon=chrome
Exec=chrome --enable-features=Vulkan,VulkanFromANGLE,DefaultANGLEVulkan %U
Categories=Application;Network;WebBrowser;
MimeType=text/html;text/xml;application/xhtml+xml;x-scheme-handler/http;x-scheme-handler/https;x-scheme-handler/ftp;
StartupNotify=true

Luckily, video acceleration in Firefox seems to work properly without any fiddling.

Screen tearing

Until the X11 people cut a release containing this PR, you will experience some screen tearing with the default modesetting driver.

Allegedly, you can install the xf86-video-intel driver and enable the TearFree option in xorg.conf. However, I believe this driver is largely unmaintained, so YMMV.

I found that screen tearing is greatly reduced by setting Latency to Force lowest latency under System Settings → Display and Monitor → Compositor.

Please do not tell me to use Wayland. At the time of this writing, it does not work.
